The trading platform contains a built in programming language MetaQuotes Language 5 (MQL5), the MetaEditor development environment and strategy testing tools.
Any information about the development of trading strategies in MQL5 can be found on the official MQL5.community site. The website section Code Base contains examples of ready-to-use applications.
The MQL5 Programming Language of Trading Strategies
The trading platform has its own built-in language for programming trading strategies MetaQuotes Language 5. It is the fifth generation of MQL languages. It allows developing Expert Advisors to automate trading processes, as well as implementing your own trading strategies. MQL5 also allows creating custom indicators, scripts and function libraries.
- The language is object-oriented;
- MQL5 syntax is similar to that of C++;
- It contains a large number of functions necessary for analyzing quotes, managing positions, calling technical indicators, etc.;
- It is a high-performance language;
- High protection against decompilation: new complex encryption algorithms, file integrity checking, and the complexity of the language;
- OpenCL support to enable use of video cards for calculations in MQL5 applications;
- Integrated software development environment MetaEditor including a debugger.
A detailed description of all language constructions and functions is provided in the MQL5 Reference. All the necessary information about MQL5 can also be found on the developer community website at https://www.mql5.com.
MetaEditor is an integrated MQL5 development environment. It is a component of the trading platform. MetaEditor allows you to create, edit, compile and debug source code written in MQL5.
- MQL5 Wizard for creating templates and trading robots
MetaEditor includes the MQL5 Wizard that helps to quickly create MQL5 programs. With the MQL5 Wizard a trader without programming skills can easily create Expert Advisors. You only need to select trading signals for an Expert Advisor, as well as money management and trailing stop algorithms. The Expert Advisor code is generated automatically based on selected parameters.
In addition, the MQL5 Wizard allows creating MQL5 program templates to simplify the work of a programmer.
- Helps with the source code
MetaEditor can recognize language structures: suggests tips on how to use functions and highlights various elements of the program source code. Thus, the editor enhances navigation in the source code of trading programs and speeds up the development process.
MetaEditor allows you to debug programs to greatly facilitate troubleshooting. A step-by-step execution of a source code enables monitoring of the variable values.
- Profiling for code optimization
The editor also provides tools for software profiling. You can identify the slowest functions in the source code and optimize your program.
- Articles about programming and a source code library
Straight from the editor, you can find a plethora of MQL5 programming tutorials. You can additionally access a huge code base of free automated trading programs.
- Online MQL5 Storage with versioning support
The storage provides safe storage of files and the possibility to restore lost files, as well as access your code from any computer using a MQL5.community account.
More details about MetaEditor can be found in its built-in help files. The description of MQL5 can be found in the built-in reference and the official MQL5.community website.
Articles on the development of trading applications
MQL5.community website features an extensive library of articles on MQL4/MQL5 programming. Articles are an excellent guide for creating applications, since they cover a lot of practical tasks involving algorithmic trading. New articles are published every week.
List of all available articles is displayed directly in MetaEditor. To find the necessary material, use the online search.
Types of MQL5 Applications
Three major types of trading applications are available.
Expert Advisors are mechanical trading systems that allow complete automation of analytical and trading activities for the efficient operation in the financial markets. They allow to perform prompt technical analysis of price data and control trading activities on the basis of signals received. They also help to strictly follow a trading strategy eliminating emotions.
All Expert Advisors are stored in the /MQL5/Experts folder of the trading platform.
Custom Indicators are custom developed technical indicators intended for analyzing price dynamics. Trading tactics and Expert Advisors are developed based on algorithms of indicators. Custom indicators are only used for analyzing symbol price dynamics. Indicators cannot trade and do not have access to charts.
All indicators are stored in the /MQL5/Indicators folder of the trading platform.
A script is an application written in MQL5 designed for a single execution of an action. A script can perform both analytical and trading functions. Unlike Advisors, scripts are executed on request. In other words, if an Expert Advisor works almost continuously, a script executes its function and quits.
All scripts are stored in the /MQL5/Scripts folder of the trading platform.
Services enable the use of custom price feeds for the platform and to implement price delivery from external systems in real time, just like it is implemented on brokers' trade servers. Services can also be used to perform other service tasks in the background.
Unlike Expert Advisors, indicators and scripts, services are not linked to a specific chart. Such applications run in the background and are launched automatically when the terminal is started (unless such an app was forcibly stopped).
All services are stored under the /MQL5/Services folder of the trading platform.
Inside folders Experts, Indicators, Scripts and Services, applications can be sorted into subfolders. The structure of their location is displayed in the Navigator window.
How to Create and Run a Trading Application

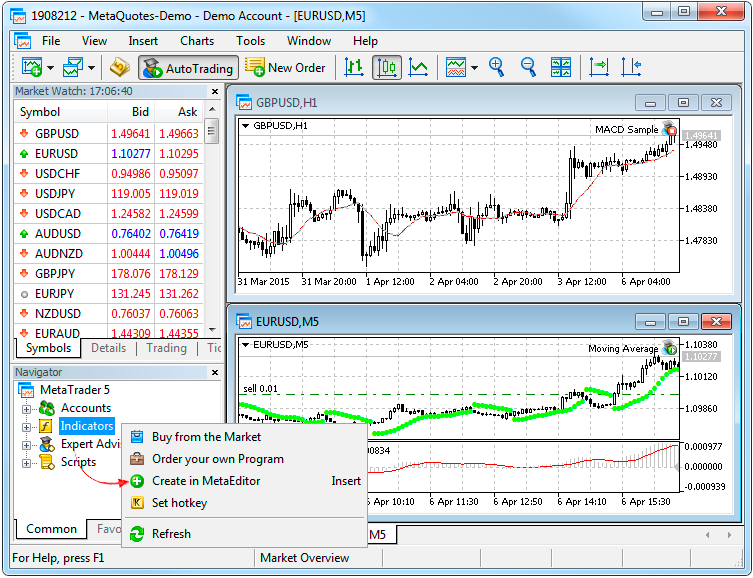

Click " Create in MetaEditor" in the context menu of the Navigator window in section Expert Advisors, Indicators or Scripts. MetaEditor can also be launched by pressing F4.

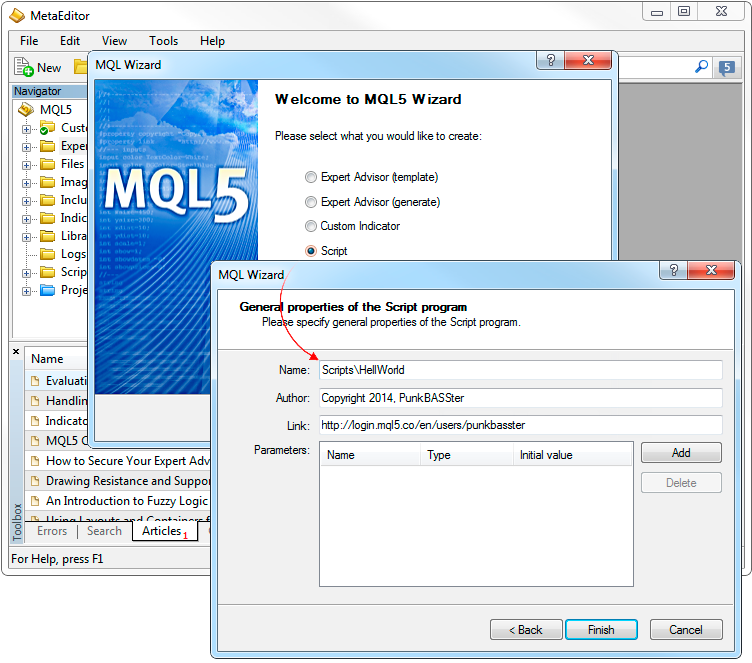

This launches MetaEditor with an automatically opened MQL5 Wizard. Use it to generate the necessary program template to quickly start software development. Let's create a simple script writing a message "Hello world" into the journal.

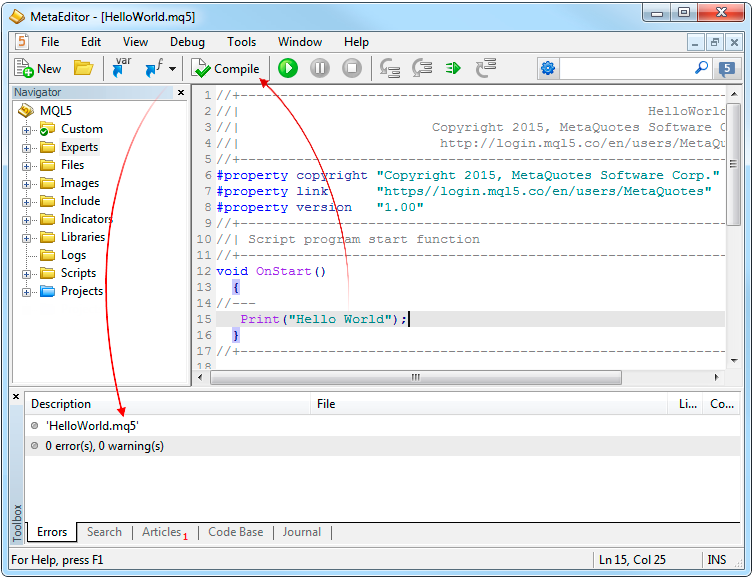

In the resulting template, we add the code Print("Hello World"); and compile it by pressing F7 to receive an executable file. The executable file has an extension EX5 and can be run in the trading platform.
Compilation results are added to the editor log.

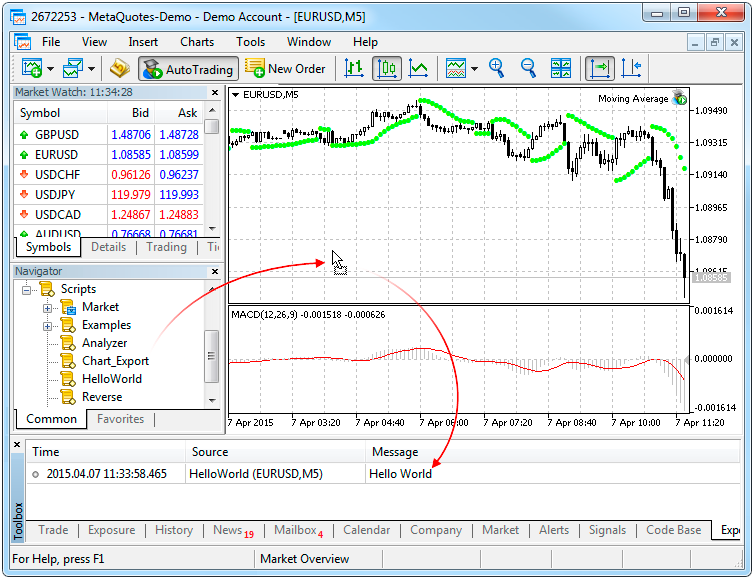

In accordance with the application type, the source code is saved to the folder MQL5\Scripts\. The executable file is created in the same folder. You can now return to the trading platform and run the generated script.
Specifics of use of automated trading programs are described in section "Expert Advisors and custom indicators".
How to Edit a Trading Application
To edit a trading robot or a custom indicator, click " Modify" in its context menu in the Navigator window or select it and press Enter. This opens MetaEditor with the source code of the selected indicator. After you have modified the indicator, re-compile it (F7). Otherwise its previous unchanged version will be used in the platform.
How to Shut Down a Trading Application
There are many ways to shut down a trading application in the platform.
Custom technical indicator
How to Run a Downloaded File of the MQ5 Source Code
If you only have a source code file (*.MQ5), save it in a folder corresponding to the application type:
- For Expert Advisors — /MQL5/Experts
- For indicators — /MQL5/Indicators
- For scripts —/MQL5/Scripts
To quickly navigate to the trading platform data folder, click " Open data folder" in the File menu.
To run a file in the trading platform, compile it in the MetaEditor:
- Open MetaEditor by pressing F4.
- In MetaEditor, open the source code file in the Navigator window by a double left-click on the file name.
- Press F7 to compile it.
This creates an executable *.EX5 file that can be run in the trading platform.
Source files (*.MQ5) are not displayed in the Navigator window of the trading platform.
